A53 Seamless & Welded Carbon Steel Pipe

ASTM A53 is a carbon steel alloy that can be used as structural steel or for low pressure piping. ASTM A53 (ASME SA53) carbon steel pipe is a specification covering seamless, welded black and hot-dip galvanized steel pipe from NPS 1/8 "to NPS 26. A53 is suitable for pressure and mechanical applications, as well as for general use in steam, water, gas and air lines.

Classification :

Carbon Steel Pipe

+8618365771655

siri@zglysteel.com

E-mail

PRODUCT DETAILS

Keywords: Lingyue Metal

A53 Seamless & Welded Carbon Steel Pipe Description

The A53 pipe has three types (F, E, S) and two grades (A, B).
Type A53F manufactured with furnace butt welds or may have continuous welds (Class A only)
Type A53E with resistance welds (Class A and B)
Type A53S is seamless and is found in Class A and B

Product Parameters

Product Name	A53 Seamless & Welded Carbon Steel Pipe
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer Diameter	Seamless: 1/4"-36"	Welding: 21.3mm-3620mm
	Round Tube: 1/2"-10"	Square Tube/Rectangular Tube: 15x15mm-400x600mm
Wall Thickness	Seamless: 1.25mm-50mm	Welding: 1.65mm-65mm
Length	3-12 meters, Support customization
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition

A53	Grade	C	Mn	P	S	Cu	Ni	Cr	Mo	V
TypeS(Seamless)	A	0.25	0.95	0.05	0.05	0.4	0.4	0.4	0.15	0.08
TypeS(Seamless)	B	0.3	1.2	0.05	0.05	0.4	0.4	0.4	0.15	0.08
TypeE(Resistance Welding)	A	0.25	0.95	0.05	0.05	0.4	0.4	0.4	0.15	0.08
TypeE(Resistance Welding)	B	0.3	1.2	0.05	0.05	0.4	0.4	0.4	0.15	0.08
TypeF(Furnace Welding)	A	0.3	1.2	0.05	0.05	0.4	0.4	0.4	0.15	0.08

Mechanical Properties

A53	GradeA	GradeB
Tensile Strength Min.psi(MPa)	48,000(330)	60,000(415)
Yield Strength Min.psi(MPa)	30,000(205)	35,000(240)

Physical Performance

Density 20°C Kg/dm³	Modulus of Elasticity Kn/² mm				Coefficient of Thermal Conductivity 20°C W/m K	Heat Capacity 20°C J/kg K	Resistivity 20°C Ωmm²/m
Density 20°C Kg/dm³	20C°	300C°	400C°	450C°	Coefficient of Thermal Conductivity 20°C W/m K	Heat Capacity 20°C J/kg K	Resistivity 20°C Ωmm²/m
7.85	210	192	184	179	51	461	0.20

Scope of Application

Construction: underground pipeline, underground water, hot water transmission, mechanical processing, bearing sleeve, processing machinery parts, etc.
Electrical: natural gas transmission, hydroelectric fluid pipelines, anti-static pipes for wind farms, etc.

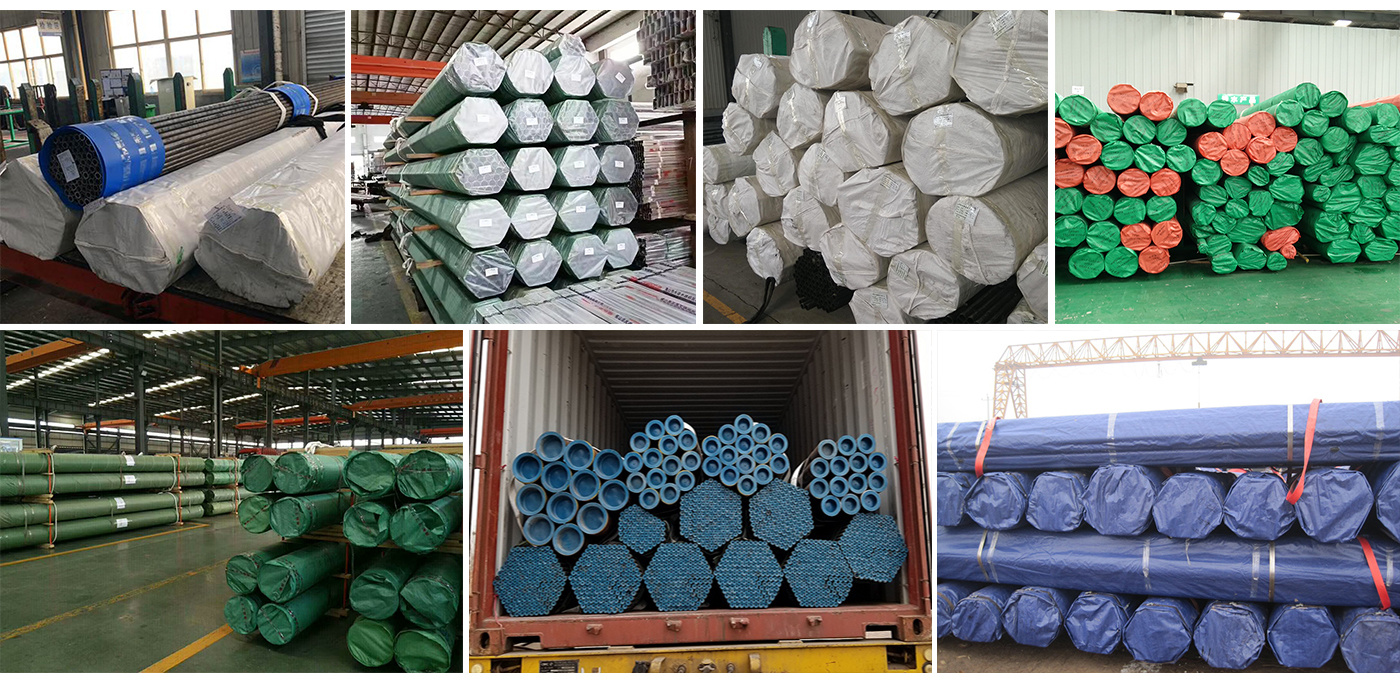

Packing and delivery

The main export products include steel products such as steel plates/coils/tubes/rods. The management has been engaged in the steel industry for more than 20 years, the management team is experienced and has established solid business relationships with customers and factories. Lingyue's annual sales volume exceeds 10 million tons, and it provides customized processing services for a variety of products.

CUSTOMER VISIT

The products are exported to more than 100 countries and regions around the world, including Europe, America, and Asia, and are well received by customers at home and abroad.

PARTNER

FACTORY WORKSHOP

Factory Workshop

APPLICATION AREAS

Chemical Plant

Mining Area

Airport

Airplane

Ship

Chemical Industry

FAQ

Will you can accept the customized and OEM products?

A:Yes,we can do the production based on your drawings and with your logo,also because we have very strong design and development team,so the feedback is very good for customized product.

What is your payment terms?

A:Commonly two payment term for new customers （1）30%T/T as deposit,70% balance against B/L copy. （2）100% Irrevocable L/C at sight. If you need other terms, please feel free to contact us too, we will try our best.

How about the samples? Is it free to extra fees?

A：Samples are free, you need to pay for shipping.

How long is your delivery time?

A:Our daily inventory is more than 8000 tons, so far common products size,just need 5 days from stocks; if the special size from new production, delivery 7-15 days.

How to control and guarantee your shipment quality?

A:（1）All our factories are ISO 9001 certified facility; （2）World famous origin mills as TISCO, Bao steel; （3）Ex factory inspection by our own laboratory; （4）SGS/BV Third party inspection before delivery.
