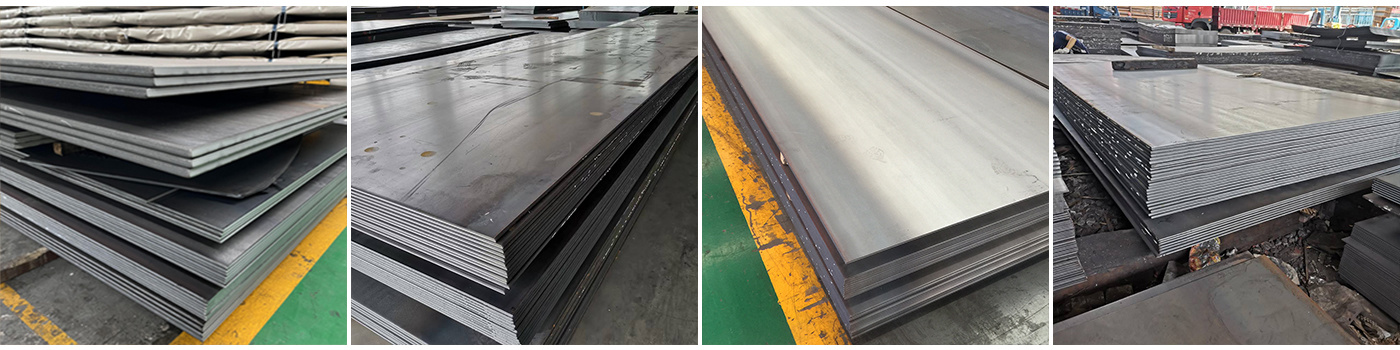

A36/Q235/S235JR Carbon Steel Plate

A36 is a low-carbon steel containing trace amounts of manganese, phosphorus, sulfur, silicon and other elements such as copper. A36 has good weldability and high yield strength, and is the structural steel plate specified by the engineer. ASTM A36 steel plate is often manufactured into a variety of structural steel parts. This grade is used for welded, bolted or riveted construction of bridges and buildings, as well as for general structural purposes. Due to its low yield point, A36 carbon plate can be used to design lighter weight structures and equipment, and provide good weldability. Construction, energy, heavy equipment, transportation, infrastructure and mining are the industries where A36 panels are commonly used.

Classification :

Carbon Steel Plate

+8618365771655

siri@zglysteel.com

E-mail

PRODUCT DETAILS

Keywords: Lingyue Metal

A36/Q235/S235JR Carbon Steel Plate Description

Product Parameters

Product Name	A36/Q235/S235JR Carbon Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

C	Cu	Fe	Mn	P	Si	S
0.25~0.290	0.20	98.0	1.03	0.040	0.280	0.050

Mechanical Properties

A36

Limit Tensile Strength

Tensile Strength,

Yield Strength

Elongation at Break

(Unit: 200mm)

Elongation at Break

(Unit: 50mm)

Modulus of Elasticity

Bulk Modulus

(Typical for Steel)

Poisson's Ratio

Shear Modulus

Metric

400~550MPa

250MPa

20.0%

23.0%

200GPa

140GPa

0.260

79.3GPa

Imperial

58000~79800psi

36300psi

20.0%

23.0%

29000ksi

20300ksi

0.260

11500ksi

Physical Performance

Physical Performance	Metric	Imperial
Density	7.85 g/cm³	0.284 lb/in³

Scope of Application

Bolted, riveted or welded structures for bridges, buildings and oil drilling rigs.
Used for forming storage tanks, silos, bearing plates, fixtures, rings, templates, fixtures, sprockets, cams, gears, bottom plates, forgings, decoration engineering, piles, brackets, automobiles and agricultural equipment, frames, mechanical parts, etc.

Equivalent Material

National Standard GB	European Standard EN	American Standard ASTM	German Standard DIN, WNr	Japanese Standard JIS	French Standard AFNOR	British Standard BS	Canada HG
Q235B	S235JR	A283C	St37-2	SM400A	E24-2	40A/40B	230G
Italy UNI	India IS	Switzerland SS	Australia ONORM	Norway NS	Spain UNE	International Standards ISO	Portugal NP
Fe360B	IS2062	1311/1312	RSt360B	NS12123	AE235B-FN	E235B/Fe360B	FE360-B

Packing and delivery

The main export products include steel products such as steel plates/coils/tubes/rods. The management has been engaged in the steel industry for more than 20 years, the management team is experienced and has established solid business relationships with customers and factories. Lingyue's annual sales volume exceeds 10 million tons, and it provides customized processing services for a variety of products.

CUSTOMER VISIT

The products are exported to more than 100 countries and regions around the world, including Europe, America, and Asia, and are well received by customers at home and abroad.

PARTNER

FACTORY WORKSHOP

Factory Workshop

APPLICATION AREAS

Chemical Plant

Mining Area

Airport

Airplane

Ship

Chemical Industry

FAQ

Will you can accept the customized and OEM products?

A:Yes,we can do the production based on your drawings and with your logo,also because we have very strong design and development team,so the feedback is very good for customized product.

What is your payment terms?

A:Commonly two payment term for new customers （1）30%T/T as deposit,70% balance against B/L copy. （2）100% Irrevocable L/C at sight. If you need other terms, please feel free to contact us too, we will try our best.

How about the samples? Is it free to extra fees?

A：Samples are free, you need to pay for shipping.

How long is your delivery time?

A:Our daily inventory is more than 8000 tons, so far common products size,just need 5 days from stocks; if the special size from new production, delivery 7-15 days.

How to control and guarantee your shipment quality?

A:（1）All our factories are ISO 9001 certified facility; （2）World famous origin mills as TISCO, Bao steel; （3）Ex factory inspection by our own laboratory; （4）SGS/BV Third party inspection before delivery.
